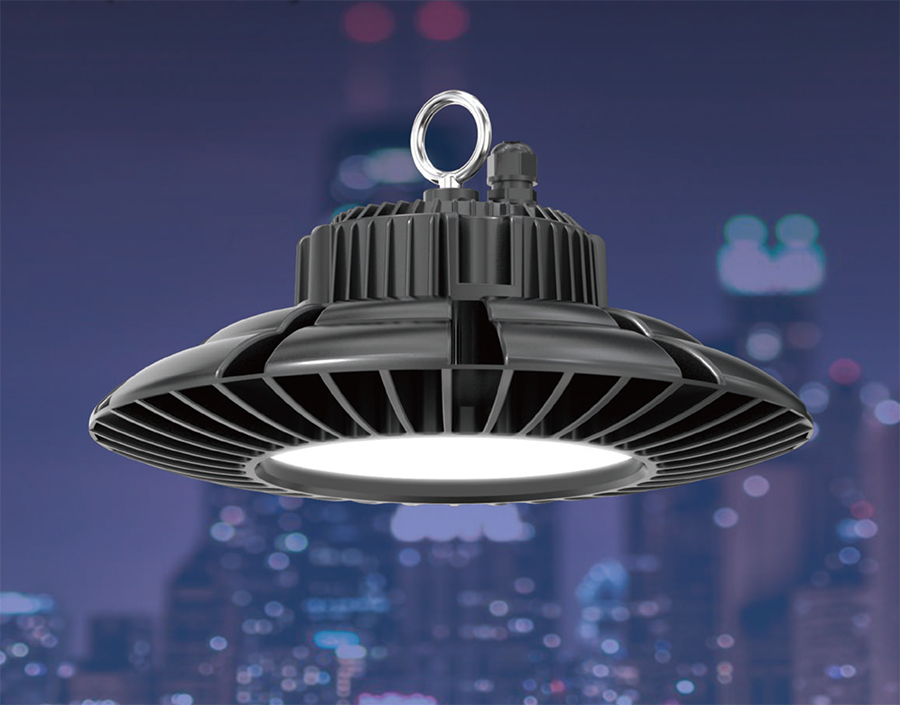

UFO LED High Bay Lights (100W 120W 150W 200W)

Click to view original image
Available Wattages: 100W/120W/150W/200W
Luminous Flux: 13000/15600/19500/26000 lm
Light Source: Lumileds LUXEON 3030 2D LEDs
Unit Price: Request a quote
Origin: China
Last Updated: 2020-09-05 08:26
Views: 909
Send inquiry
Company Information
AOK Lighting develops and manufactures industrial and outdoor lighting fixtures, including LED high bay lights, LED street lights, LED area lights, LED flood lights, LED tunnel lights and LED gas station lights. The company delivers innovative des... [more]


Product Details
  • Power: 100W/120W/150W/200W
  • Input Voltage: 100-277 VAC (347/480 VAC optional)
  • Utility Frequency: 50/60 Hz
  • Light Source: LUXEON 3030 2D
  • Luminous Efficacy: 130 lm/W
  • Luminous Flux: 13000/15600/19500/26000 lm
  • Color Rendering Index (CRI): ≥70 (≥80 optional)
  • Color Temperature (CCT): 3000-6500K
  • Lumen Maintenance: L70>50,000 hours
  • Beam Angle: 60°/90°/120°
  • LED Driver: Mean Well
  • Power Factor: >0.95
  • Total Harmonic Distortion (THD): <15%
  • Driver Protection: Short circuit / Over current / Over voltage / Over temperature
  • SPD: 4KV, 6KV, 10KV, 20KV
  • Dimming: 3 in 1 (1~10Vdc, 10V PWM signal and resistance)
  • Lighting Control: Twist-lock/plug-in lock photocell
  • Operating Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Ingress Protection Rating: IP65
  • Impact Protection Rating: IK10
  • Mounting Options: Ceiling hanging, surface mount, wall mount
  • Certification: TUV-CB, TUV-GS, TUV-CE, RCM, SAA, RoHS
  • Warranty: 5 Years
The iU Series UFO LED high bay lights from AOK are a line of specification grade LED luminaires with a full set of code and regulatory compliances. The industry's most complete certification portfolio, including UL, DLC, CB, SAA, GS, RCM, and CE, makes the quality, performance and reliability of iU high bay luminaires firmly guaranteed and enables them to stand out in the market. Constructed of durable die cast aluminum, the patented heat sink incorporates aesthetics and functionality that make AOK's products to blend seamless with modern industrial facilities. Optimum thermal management and rugged construction enable the luminaire to withstand higher ambient temperatures (up to 50°C) while providing durable protection for the LED components. The streamlined profile makes it less likely to trap dust and dirt, ensuring the luminaire's consistent thermal performance. The high flux density LUXEON 3030 2D LEDs provide iU high bay lights highly competitive lumen-per-dollar performance as well as an industry-leading system efficacy of up to 140 lumens per watt. The AOK iU Series luminaires are powered by Mean Well HLG power supply which feature excellent efficiency over a wide operating range. This highly configurable luminaire features multiple photometric distributions of 60, 90 and 120 degrees. The rugged high bay is IP66-rated for dust and moisture ingress protection. With a range of lumen packages, optical distributions, watertight integrity, and flexible mounting options, iU Series UFO LED high bay lights are an excellent choice for use in a wide range of industrial and commercial applications such as warehouses, manufacturing and processing facilities, retail facilities, distribution centers, aircraft hangars, and gymnasiums.

iU-Series-UFO-LED-high-bay-lights-2
