60W/100W/150W/200W LED Street Lights

Click to view original image
Power Range: 60W/100W/150W/200W
Light Source: Nichia 3030
Luminous Flux: 6600/12000/17350/24000 lm
Unit Price: Request a quote
Origin: China
Last Updated: 2017-11-13 23:32
Views: 558
Send inquiry
Company Information
Yaham Optoelectronics is an established manufacturer of LED lights, LED displays and LED traffic signs with vast experience in LED applications and extensive in-house engineering and manufacturing capabilities in LED technology. Over the last 15 y... [more]


Product Details
  • Power: 60W/100W/150W/200W
  • Input Voltage: AC 100~277V
  • Light Source: Nichia 3030
  • Luminous Efficacy: 110 lm/W min.
  • Luminous Flux: 6600/12000/17350/24000 lm
  • Color Rendering Index (CRI): ≥75
  • Color Temperature (CCT): 4500~5500K (2500~5500K Optional)
  • Lumen Maintenance: L70>100,000 hours
  • Beam Angle: 80°*150°
  • LED Driver: Mean Well
  • Power Factor: 0.95 min.
  • Power Efficiency: 93%
  • Total Harmonic Distortion (THD): <15%
  • Dimming: 1-10V/PWM
  • Lighting Control: Daylight/motion sensor, DALI control
  • Operating Temperature: -40℃~+50℃
  • Ingress Protection: IP65
  • Luminaire Dimensions: L570mm×W139mm×H99mm
  • Certification: CE, RoHS
  • Warranty: 5 Years

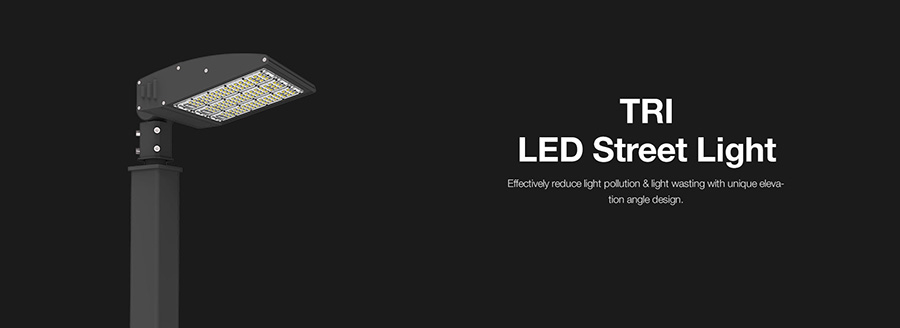

Yaham TRI series LED street lights are designed to provide optimized optical control for precise cutoff of backlight and uplight and uniform light distribution across the target area. These commercial grade, highly engineered LED luminaires feature outstanding performance in delivering whiter, brighter lighting that improves safety and visibility, while adding greater flexibility, style and scalability for area, site and street lighting applications. TRI utilizes advanced Nichia LED light engine technology with L70 lifetime over 100,000 hours without sacrificing application performance. Unique optics and photometrics design exploit the directional nature of LED light emission to get maximum spacing, target lumen, reduced offsite visibility and on-site glare. TRI incorporates a sleek and robust heatsink to ensure optimal heat transfer in +45°C ambient environments. LEDs are driven by a high-efficiency driver which is protected from short circuits, voltage overload and current overload. The driver's excellent cold temperature starting capability enables TRI LED street lights to operate in ambient temperatures as low as -40°C. The aluminum housing is coated with a thermoset super TGIC polyester powder coat finish for excellent resistance to corrosion, ultraviolet degradation and abrasion. The luminaire is completely sealed with an IP65 weatherproofing rating.
