10W AC COB LED Downlight

Click to view original image
Unit Price: Request a quote
Term: FOB shenzhen
MOQ: 1000 pcs
Lead Time: 30 days
Origin: China
Last Updated: 2017-11-14 08:26
Views: 745
Send inquiry
Company Information
Furuier designs, prototypes, and manufactures high-quality, cutting-edge LED lighting products for architectural, commercial and indusrial applications. The company\'s products include UFO high bay luminaires, vapor-tight and waterproof linear fix... [more]


Product Details
  • Type: Recessed
  • Light Assembly: Fixed
  • Lights & Shape: Single Round
  • Application: Floodlighting,Spotlighting
  • Beam Angle: 51-60°
  • Power: 10-19W
  • Input Voltage: 110-220VAC,220-240VAC
  • LED: Integrated COB
  • LED Brand:
  • CRI: 80 min.
  • Luminous Flux: 1000-1199 lm
  • Luminous Efficacy: 100-109 lm/W
  • Features:
  • Trim Style: Open
  • Trim Finish: White
  • Cutout Size: 71-90mm
  • Driver: Driverless
  • Dimmability: TRIAC
  • L70 Life: 20,000 Hours
  • IP Rating: IP20
  • Certification: CE,RoHS
  • Warranty: 3 Years

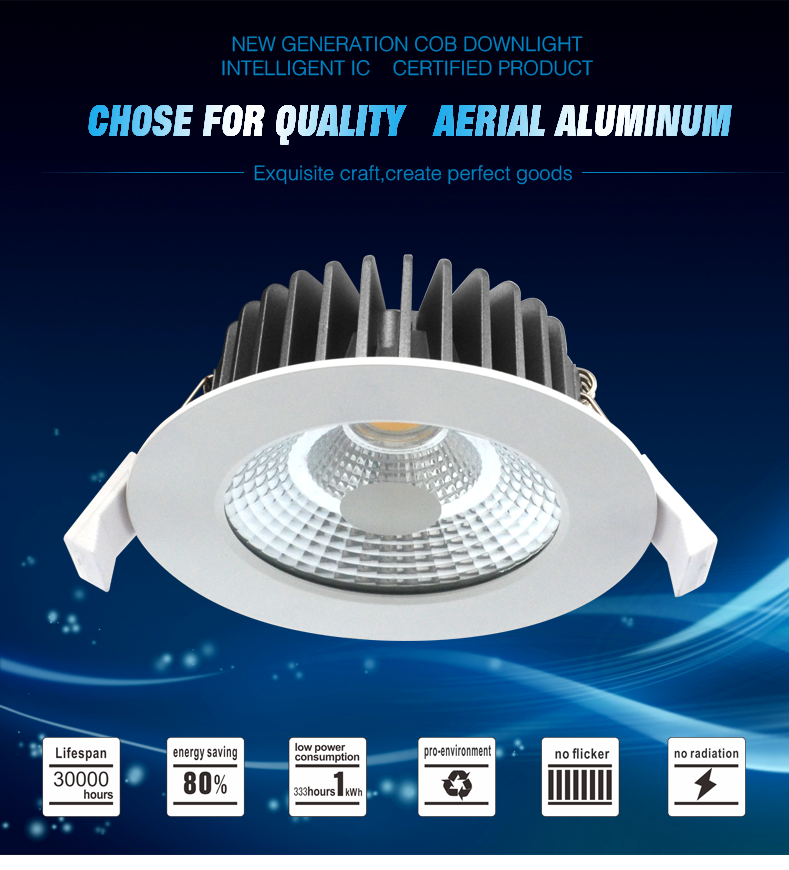

This is a fixed recessed COB LED downlight operating directly off of AC line voltage, with highly efficient optics and automatic fixing clips for quick and hassle-free installation. Chip-on-board LEDs allow for bright, homogeneous light output. The downlight features a high brightness (1050 Lumens) that is perfect for high and middle ceiling applications. Optimized light spectrum for intense white light and rich color rendering, this light will surely light up your life with colors that are true and natural. The 60 degree beam casts a very good amount of light where you direct it to without rendering very dark patches in other places, giving you more flexibility when designing a lighting scheme. The driverless technology eliminates the need for an AC-DC power converter, which is anticipated to lead to an extended operating life and significant cost savings because no additional circuit complicates the configuration of an LED module and may even undermine system efficiency and reliability when supply power is converted. An additional benefit of the innovative configuration is the full range dimmability and the compatibility with phase-cut (triac) dimmers.

Model: F8-003-B30-10W
Cut-out hole: 90mm
Dimension: φ110*H50MM
Light source: 2835 SMD
Voltage: AC110-120V/AC220-240V
Material: die casting aluminum+PMMA
Color temperature: 2700K/3000K/4000K/5000K/6000K
Luminous flux: >1050LM±5%
Luminous Efficacy: >105lm/w
CRI: >80Ra
Beam Angle: 60°
Lumen attenuation: 1000hrs<0.5%
Life Span: 30,000hrs
IP Grade: IP44
